1 / 2 '' To 4 '' Female Thread PP Compression Tee With Ring Nut High Mechanical Resistance

    Buy cheap 1 / 2 '' To 4 '' Female Thread PP Compression Tee With Ring Nut High Mechanical Resistance from wholesalers

    Buy cheap 1 / 2 '' To 4 '' Female Thread PP Compression Tee With Ring Nut High Mechanical Resistance from wholesalers
    • Buy cheap 1 / 2 '' To 4 '' Female Thread PP Compression Tee With Ring Nut High Mechanical Resistance from wholesalers
    • Buy cheap 1 / 2 '' To 4 '' Female Thread PP Compression Tee With Ring Nut High Mechanical Resistance from wholesalers
    • Buy cheap 1 / 2 '' To 4 '' Female Thread PP Compression Tee With Ring Nut High Mechanical Resistance from wholesalers

    1 / 2 '' To 4 '' Female Thread PP Compression Tee With Ring Nut High Mechanical Resistance

    Ask Lasest Price
    Brand Name : CR
    Model Number : 20-110mm
    Supply Ability : 200000 Piece/Pieces per Month
    Price : $2.65
    Certification : EN ISO 9001:2000
    • Product Details
    • Company Profile

    1 / 2 '' To 4 '' Female Thread PP Compression Tee With Ring Nut High Mechanical Resistance

    1 / 2 '' To 4 '' Female Thread PP Compression Tee With Ring Nut

    ested and approved by all leading certification bodies. Quality system: EN ISO 1549 4: 2019, anti-corrosion, can be used for hot and cold water supply

    PP Female Tee Description
    DDNPNCTN
    20 x 1/215*1516100
    20 x 3/415*2016100
    25 x 1/220*151660
    25 x 3/420*201660
    25 x 120*251660
    32*1/225*151640
    32 x 3/425*201640
    32*125*251640
    32*1-1/425*321640
    40*132*251630
    40*1-1/432*321630
    40*1-1/232*401630
    50*11/440*321615
    50*11/240*401615
    50*240*501615
    63*11/250*401610
    63*250*501010
    63*2-1/250*651010
    75*265*50106
    75*2-1/265*65106
    75*365*80106
    90*380*80106
    90*480*100106
    110*3100*80104
    110*4100*100104

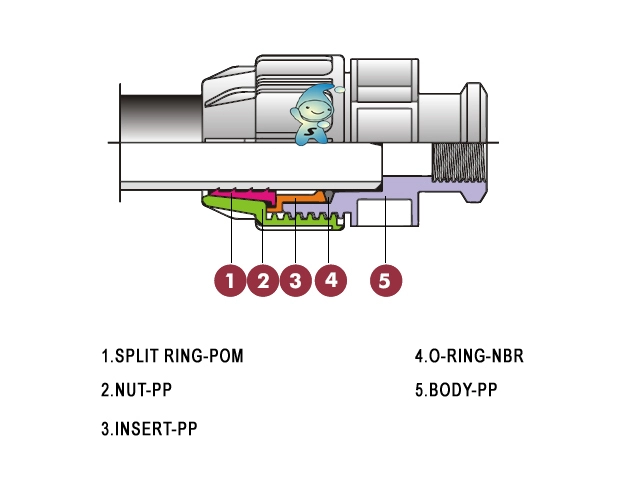

    PP Female Tee Assembly Instruction
    1. Chamfer with bevel tool
    2. Loosen the ring nut that has not been removed from the valve body and check that the O-ring and snap ring are in the correct position.
    3. Insert the tube end without tightening the ring nut. Push the joint until the tube passes the O-ring and reaches the stop.
    4. Tighten the ring by hand, and then tighten it further with a belt / chain wrench.

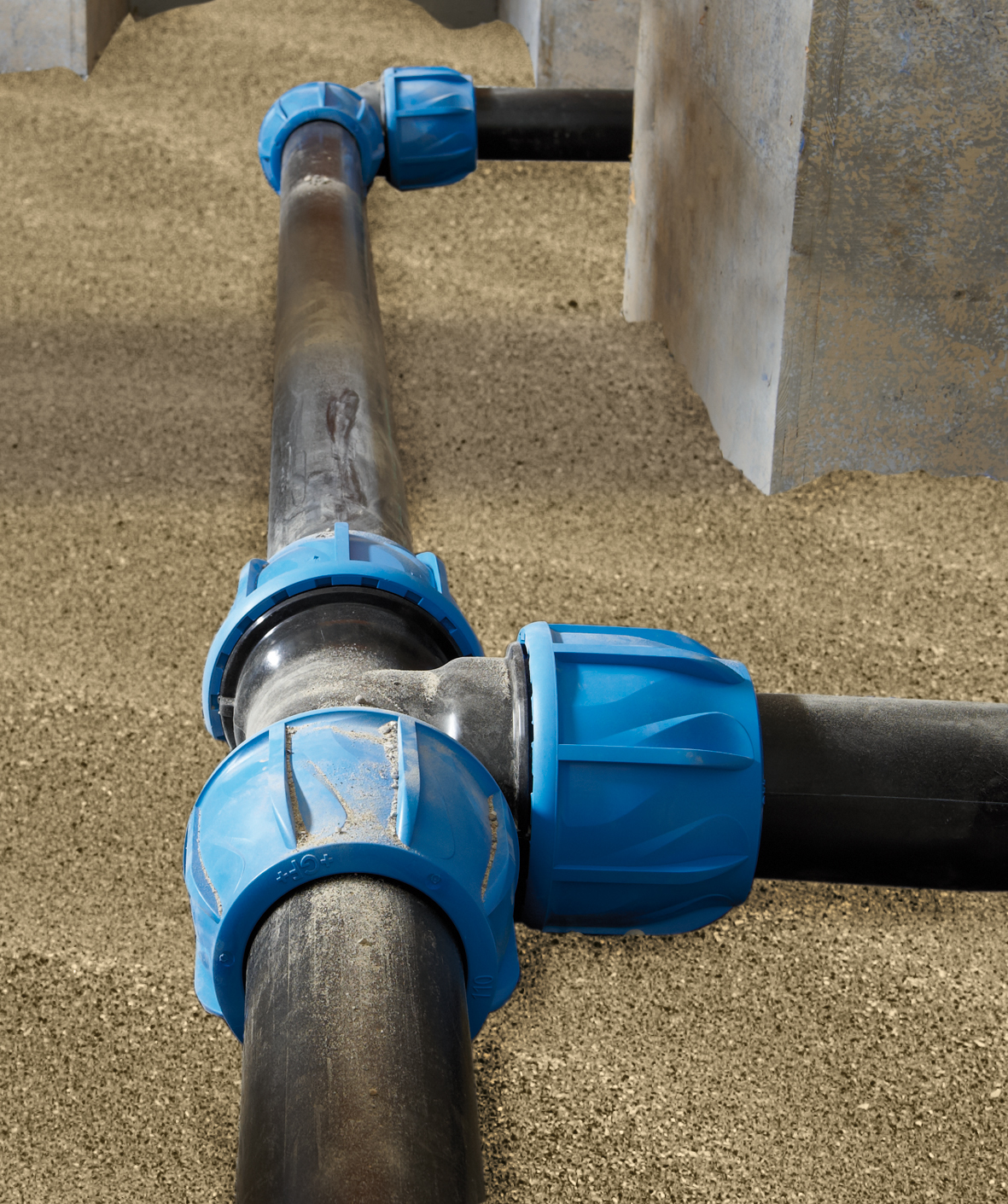

    PP Female Tee Application

    Quality 1 / 2 '' To 4 '' Female Thread PP Compression Tee With Ring Nut High Mechanical Resistance for sale
