High Density Polyethylene HDPE Pipe for Water Supply Large Size
PN16 PE100
Product Description
Chuangrong HDPE pipe is produced by high density polyethylene raw
material. Uses in drinking water,
municipal, industrial, marine, mining, storage, canal and
agricultural area. HDPE pipe is strong, Environ
-mentally, flexible and lightweight. It is the best choice with its high
quality, lower cost and performance.
High density polyethylene pipes resist to corrosion, abrasion and high resistance to
chemical resistance.
HDPE pipes with 50 years life long term being produced by CHUANGRONG based in China and are
shi-
pped more than 60 countries in the world.
Specification of HDPE pipe
| Product Name | HDPE Pipe for water supply |
| Sizes Available | DN 20 mm - 1200mm, 1 inch - 50 inch |
| SDR | SDR41,SDR33, SDR26,SDR21, SDR17,SDR13.6,SDR11,SDR9 |
| PN | PN4,PN5,PN6,PN8,PN10 ,PN12.5,PN16,PN20 |
| Material | PE80, PE100 |
| Executive Standard | ISO4427, DIN8074,ASTM F714 or D3035 – ASTM 3350 |
| Colors Available | Black color with blue strips, blue color, Orange or as request. |
| Packing Method | Normal export packing.
Pipe dia.20mm-63mm can be in coils with 50m/100m length, Pipe dia. >63mm in bars with 5.8m/11.8m length |
| Production Lead Time | Depending on the order quantity.
Normally about 5 days for 20ft container, 10 days for a 40ft
container. |
| Certificate | WRAS,ISO, CE,BV,SGS |
| Supply Ability | 100000 Ton/Year |
| Payment Method | T/T, L/C at sight,West Union |
| Trading Method | EXW, FOB, CFR, CIF,DDU |

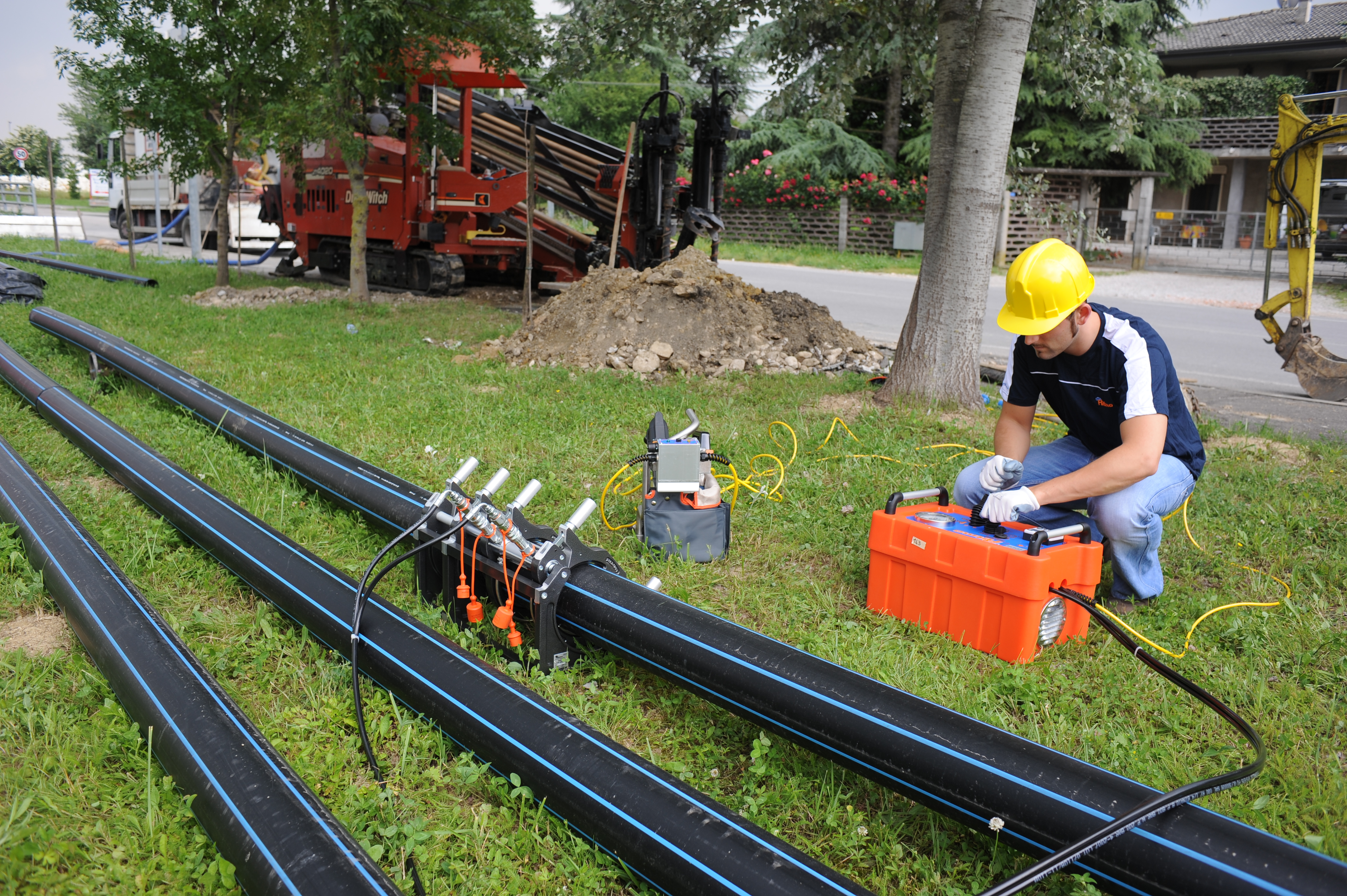

Application of HDPE Pipe for Water Supply

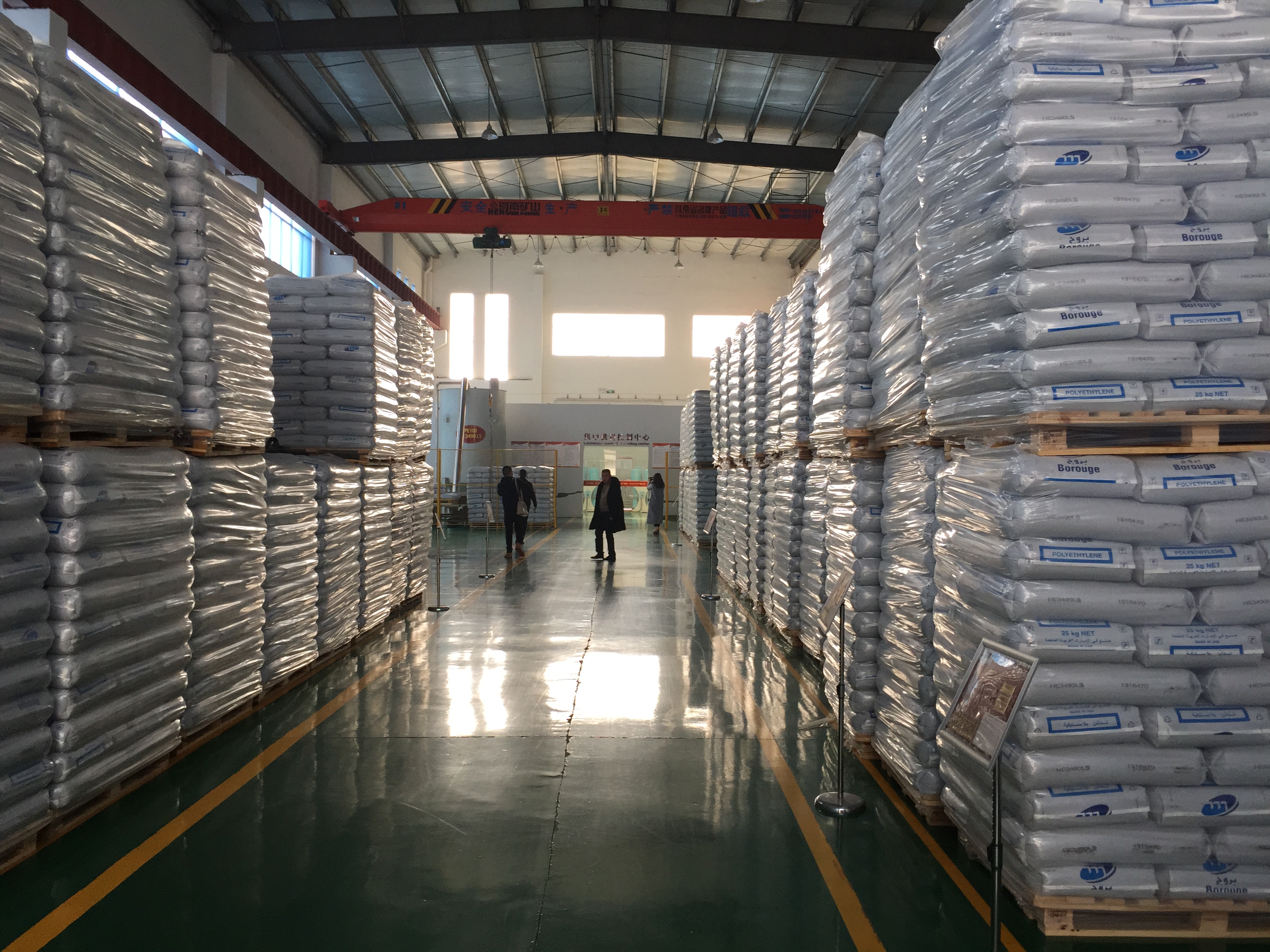

Warehouse of HDPE virgin raw material
Production workshop of HDPE pipe
Own 26 sets of advanced pipe production lines at domestic and
abroad.
Cargo storage area
Certifications of HDPE pipe
ISO9001-2008,WRAS, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight
blasting test,longitudinal shrinkage rate test,
quick stress crack resistance test, tensile test and melt index
test, so as to ensure the quality of products
totally reach the relevant standards from raw materials to finished
products.
