Green PPR Pipe In Size 20-160mm For Hot And Cold Water Using
Product technology data
Nominal outside diameter dn(mm) | Nominal wall thickness en(mm) | |||||
S5 | S4 | S3.2 | S2.5 | |||
20 | 2 | 2.3 | 2.8 | 3.4 | ||
25 | 2.3 | 2.8 | 3.5 | 4.2 | ||
32 | 2.9 | 3.6 | 4.4 | 5.4 | ||
40 | 3.7 | 4.5 | 5.5 | 6.7 | ||
50 | 4.6 | 5.6 | 6.9 | 8.3 | ||
63 | 5.8 | 7.1 | 8.6 | 10.5 | ||
75 | 6.8 | 8.4 | 10.3 | 12.5 | ||
90 | 8.2 | 10.1 | 12.3 | 15 | ||
110 | 10 | 12.3 | 15.1 | 18.3 | ||
160 | 14.6 | 17.9 | 21.9 | 26.6 |
Characteristics of PP-R Pipes
1. Well heat resistance ability
The pipes can be used for a long time while the working temperature
of water is 70° C. They can be used for a short time while it
reaches 95° C. The softening temperature is 140° C.
2. Well insulation ability
The thermal conductivity of PP-R pipe materials is very low
compared with steel and copper pipes.
Application Area

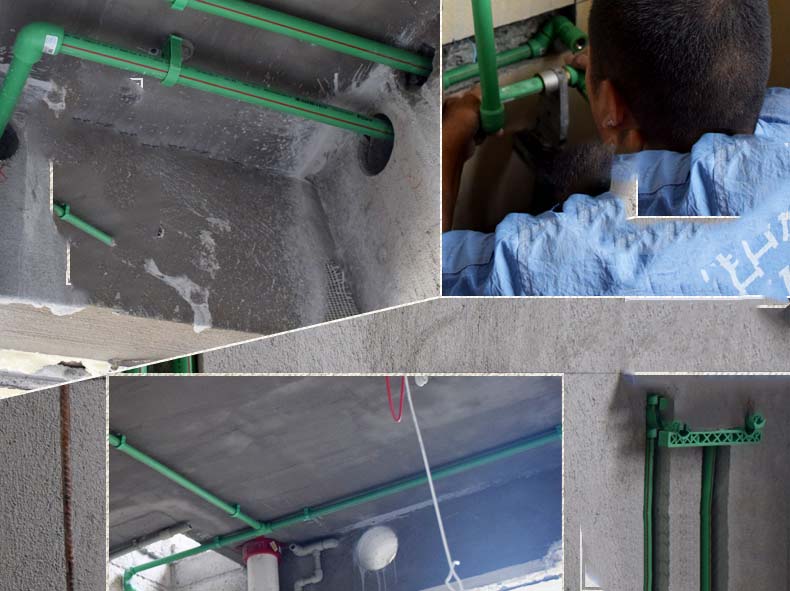

1. Cold and hot water systems of residence and commercial
buildings.
2. Transportation of industrial water supply and chemical
materials.
3. Pure water pipe system.
4. Piping networks for rainwater utilization systems.
5. Irrigation systems for gardens.
6. Transportation system of drinking water production.
7. Piping networks for solar plants.
8. Other pipes in industry and agriculture.
![]() |
