Electrofusion HDPE Equal Tee 110mm PN16 SDR11 PE100 For Residential Water Supply

Ask Lasest Price
Brand Name :	CR
Model Number :	20mm~400mm
Certification :	ISO9001-2008, CE,BV,SGS,Factory test
Price :	$1.5~ 254.69USD/PCS
Payment Terms :	L/C,T/T, Western Union
Supply Ability :	100000 Ton/Tons per Year
Delivery Time :	40GP during 3~4 weeks or as required

Add to Cart

Product Details
Company Profile

Electrofusion HDPE Equal Tee 110mm PN16 SDR11 PE100 For Residential Water Supply

110mm PN16 SDR11 PE100 Electrofusion HDPE Fittings Equal Tee for Water supply

Production Description of Electrofusion HDPE Equal Tee

-Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together:

After electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted

in electric fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings

well.

Main reasons of CHUANGRONG Electrofusion HDPE Fittings

1.Cost-effective

Highest cost performance

Compared with traditional steel pipes, it is light and easy for workers to install and repair

Low installation and maintenance costs

Easy loading and transportation

Suitable for non-excavation

2.Flexiblity

Multiple connection methods, suitable for electric melting, hot melting, socket, flange connection.

Electrofusion is the most efficient, time-saving, and labor-saving welding method.

CHUANGRONG provides high-, middle- and low-end brands of electric fusion welding machines

to meet the various needs of customers.

Including RITMO and CHUANGRONG Brand.

3.Professional Solution

1) Accept customer OEM production, large quantity customization requirements.

2) Technical support:Professional engineers and senior, special engineers provide technical support:

More than 80 Technique personnel,20 Middle class engineer,8 Senior Engineers.

3)More than 100 sets injection molding machine and the largest (300,000g)domestic injection molding

machine;Over 20 units of automation robot, 8 sets automation Electrofusion fittings production system.

4)Various type(Elbow,Coupler,Tee,End Cap,Saddle,Ball Valve etc) and completed specification(Ranged

from 20-630 Electrofusion type)

5)Annual production capacity up to 13000 tons(More than 10 million pieces or more)

4.Customized services

The team of CHUANGRONG pipeline system provides corresponding solutions according to customer

needs:

Various special solutions can be produced in small batches.

Standardized processes ensure highest quality

Personalized solutions for customers.

Production Workshop of Electrofusion HDPE fittings

P₂:4.7 Pin(4.0 welded by Switched adaptor) P_3:Printed Parameters P_4:Embedded copper wire

1)Fusion Pin of Electrofusion HDPE fittings

4.7mm Pin of Electrofusion HDPE fittings produced.

Besides switched adaptors for 4.0 Pin supplied to suit claw of 4.0 electrofusion machine.

2)Moulded-in welding parameters

Welding parameters as per EN1555 is printed on the fittings, Such as Products' name,OD(mm),PE100,

PN16 SDR11.

Bar code is also attached on the electrofusion fittings for scanning.

3)Element&Stops

To promote joint quality,all elements are coated with polyethylene before being moulded into the fitting body.

All fittings have removable pipe stops.The stops ensure pipes cannot be inserted past the midpoint,but can

be removed for use in,for example,repair situations.

4)High quality copper wire embed in the HDPE fittings which have Good thermal conductivity.

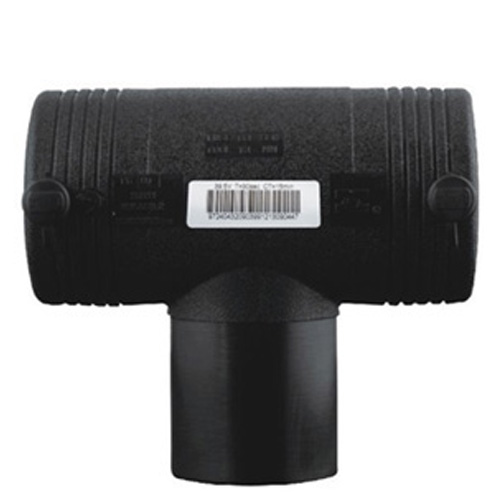

Details of Electrofusion HDPE Equal Tee

Products name	Electrofusion HDPE Equal Tee
Sizes Available	As below specification sheet in detail
SDR	SDR11,SDR17
PN	PN16,PN10
Material Brand	SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard	EN 12201-3:2011,EN 1555-3:2010
Colors Available	Black color , blue color, Orange or as request.
Packing Method	Normal export packing. by carton
Production Lead Time	Depending on the order quantity. Normally about 2~3 weeks for 20' GP, 3~4 Weeks for a 40'GP.
Certificate	ISO, CE,BV,Factory Test Report
Supply Ability	100000 Ton/Year
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF,DDU

Specification of Electrofusion HDPE Reducer

specifications φD×D1×φD	L mm	A mm	B mm	Φd mm
20×20×20	100	40	50	4.7
25×25×25	105	45	50	4.7
32×32×32	120	45	55	4.7
40×40×40	125	45	60	4.7
50×50×50	145	55	55	4.7
63×63×63	165	55	60	4.7
75×75×75	195	70	70	4.7
90×90×90	210	65	775	4.7
110×110×110	240	75	80	4.7
125×125×125	255	80	85	4.7
160×160×160	310	90	95	4.7
180×180×180	340	100	95	4.7
200×200×200	360	100	105	4.7
250×250×250	410	100	115	4.7
315×315×315	520	125	115	4.7
400×400×400	600	125	115	4.7

Applications of Electrofusion HDPE Fittings

1.Municipal water supply, gas supply and agriculture etc.
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks

Factory Test report

Test item	Standard	Conditions	Results	Unit
1.Melt Flow Index	ISO1133	190°C & 5.0Kg 0.2-0.7	0.49	g/10min
2.Density	ISO1183	@23°C ≥0.95	0.960	g/cm3
3.Oxidation Induction Time	ISO11357	210°C >20	39	Min
4. Hydrostatic Pressure Test	ISO1167	80°C 165h, 5.4Mpa	Passed
5 Size Check	ISO3126	23°C	Passed
6 Appearance	Clean& Smooth	23°C	Passed

The results according to test 1-3 are taken form the PE raw material supplier’s report.
The results according to test 4-6 are taken from the internal test results of fittings sampled from the
same batch as delivered fittings.
Marking according EN 12201 – 3 and EN 1555 – 3.
The pass/fail criteria are based on the requirements of the UNI EN 12201 and UNI EN 1555 standards.

Certifications

We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test,

quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products

totally reach the relevant standards from raw materials to finished products.
