90-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE100

    Buy cheap 90-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE100 from wholesalers

    Buy cheap 90-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE100 from wholesalers
    • Buy cheap 90-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE100 from wholesalers
    • Buy cheap 90-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE100 from wholesalers
    • Buy cheap 90-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE100 from wholesalers
    • Buy cheap 90-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE100 from wholesalers

    90-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE100

    Ask Lasest Price
    Brand Name : CR
    Model Number : 90-315mm
    Certification : ISO9001-2008, CE,BV,SGS,Factory test
    Price : $4.26~$28.02/PCS
    Payment Terms : L/C,T/T, Western Union
    Supply Ability : 100000 Ton/Tons per Year
    Delivery Time : 40GP during 3~4 weeks or as required
    • Product Details
    • Company Profile

    90-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE100

    90-315mm Electrofusion HDPE Fittings Repair Saddle for Gas supply PN16 SDR11 PE100


    Production Description of Electrofusion HDPE Rrpair Saddle

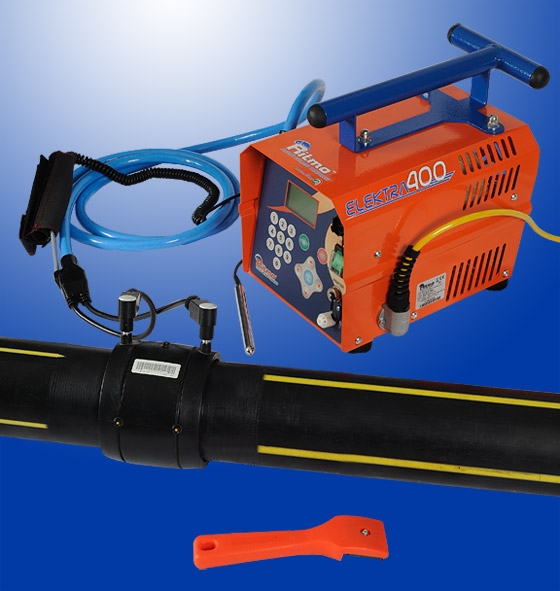

    -Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together: After

    electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric

    fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.


    Main reasons to Choose CHUANGRONG Electrofusion HDPE Fittings

    1.Technical Support

    In order to better serve our customers, we have documented a wide range of Expertise in production and

    installation of piping systems to support large and medium-sized projects.


    2.Thoughtful Service

    CHUANGRONG, as China's "GF", we fully understand the needs of customers and provide customers with

    the most cost-effective solutions --- one-stop product portfolio of HDPE pipe systems (HDPE pipes, fittings,

    welding machines and tools. Also for customers Provide high value-added services, 24 hours to answer

    customer questions.


    Our ultimate goal is to add value to our customers through professional, efficient and cost-effective solutions.

    Tailored solutions for customers. Combine our

    Expertise in developing and producing pipelines

    Systems, and deep industries

    And market knowledge, based on long-term

    Experience to provide customers with cost-effective solutions.


    3.Environmental

    CHUANGRONG HDPE pipeline system integrates its environmental responsibility into its daily business acti

    -vities.

    HDPE is a green environmental protection material, which can be recycled without causing pollution to the

    environment. We work hard to conserve natural resources and constantly strive to optimize the environmental

    performance of our products and how they used.


    4.​Cost-effective

    Highest cost performance

    Compared with traditional steel pipes, it is light and easy for workers to install and repair

    Low installation and maintenance costs

    Easy loading and transportation

    Suitable for non-excavation


    Production workshop & Equippments of Electrofusion HDPE Fittings

    Own over 100 sets of injection molding machine;

    The largest(300,000g) domestic injection molding machine;

    Over 20 units hautomation robot;

    8 sets automation Electrofusion HDPE fittings production system.

    Annual capacity of over 13000 tons which gives customers huge inventory support.




    90-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE10090-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE10090-315mm HDPE Electrofusion Fittings Repair Saddle For Gas Supply PN16 SDR11 PE100

    P2:4.7 Pin(4.0 welded by Switched adaptor) P3:Printed Parameters P4:Embedded copper wire

    1)Fusion Pin of Electrofusion HDPE fittings

    4.7mm Pin of Electrofusion HDPE fittings produced.

    Besides switched adaptors for 4.0 Pin supplied to suit claw of 4.0 electrofusion machine.


    2)Moulded-in welding parameters

    Welding parameters as per EN1555 is printed on the fittings, Such as Products' name,OD(mm),PE100,

    PN16 SDR11.

    Bar code is also attached on the electrofusion fittings for scanning.


    3)Element&Stops

    To promote joint quality,all elements are coated with polyethylene before being moulded into the fitting body.

    All fittings have removable pipe stops.The stops ensure pipes cannot be inserted past the midpoint,but can

    be removed for use in,for example,repair situations.


    4)High quality copper wire embed in the HDPE fittings which have Good thermal conductivity.


    Details of Electrofusion HDPE Repair Saddle

    Products name

    Electrofusion HDPE Repair Saddle

    Sizes Available

    As below specification sheet in detail

    SDR

    SDR11

    PN

    PN16

    Material Brand

    SINOPEC, BASELL, SABIC, BOROUGE etc

    Executive Standard

    EN 1555-3:2010

    Colors Available

    Black color or as request.

    Packing Method

    Normal export packing. by carton

    Production Lead Time

    Depending on the order quantity.
    Normally about 2~3 weeks for 20' GP, 3~4 Weeks for a 40'GP.

    Certificate

    ISO, CE,BV,Factory Test Report

    Supply Ability

    100000 Ton/Year

    Payment Method

    T/T, L/C at sight

    Trading Method

    EXW, FOB, CFR, CIF,DDU


    Specification of Electrofusion HDPE Repair Saddle

    specifications

    φD

    L

    mm

    A

    mm

    H

    mm

    φd

    mm

    90145154684.7
    110145160604.7
    160190230784.7
    200190235904.7
    250190300654.7
    315190300754.7

    Applications of Electrofusion HDPE Fittings

    1.Municipal water supply, gas supply and agriculture etc.
    2.Commercial & Residential water supply
    3.Industrial liquids transportation
    4.Sewage treatment
    5. Food and chemical industry
    7. Replacement of cement pipes and steel pipes
    8. Argillaceous silt, mud transportation
    9. Garden green pipe networks






    Inspection Equipment of Electrofusion HDPE fittings

    Finished products get well inspection before delivery.


    Factory Test report of Electrofusion HDPE Repair Saddle

    Test itemStandardConditionsResultsUnit
    1.Melt Flow IndexISO1133190°C & 5.0Kg 0.2-0.70.49g/10min
    2.DensityISO1183@23°C ≥0.950.960g/cm3
    3.Oxidation Induction TimeISO11357210°C >2039Min
    4. Hydrostatic Pressure TestISO116780°C 165h, 5.4MpaPassed
    5 Size CheckISO312623°CPassed
    6 AppearanceClean& Smooth23°CPassed
    • The results according to test 1-3 are taken form the PE raw material supplier’s report.
    • The results according to test 4-6 are taken from the internal test results of fittings sampled from the
    • same batch as delivered fittings.
    • Marking according EN 12201 – 3 and EN 1555 – 3.
    • The pass/fail criteria are based on the requirements of the UNI EN 12201 and UNI EN 1555 standards.

    Certifications of Electrofusion HDPE Repair Saddle

    We can supply ISO9001-2008, BV ,SGS, CE etc certification.
    All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test,

    quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products

    totally reach the relevant standards from raw materials to finished products.
