    Black Color HDPE Socket Fusion Fittings Reducing Tee PE100 PN16 SDR11

    Ask Lasest Price
    Brand Name : CR
    Model Number : 20-110mm
    Certification : ISO9001-2008, CE
    Price : $0.08~$3.14/PCS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000 Ton/Tons per Year
    Delivery Time : 40GP during 2 weeks or as required
    • Product Details
    • Company Profile

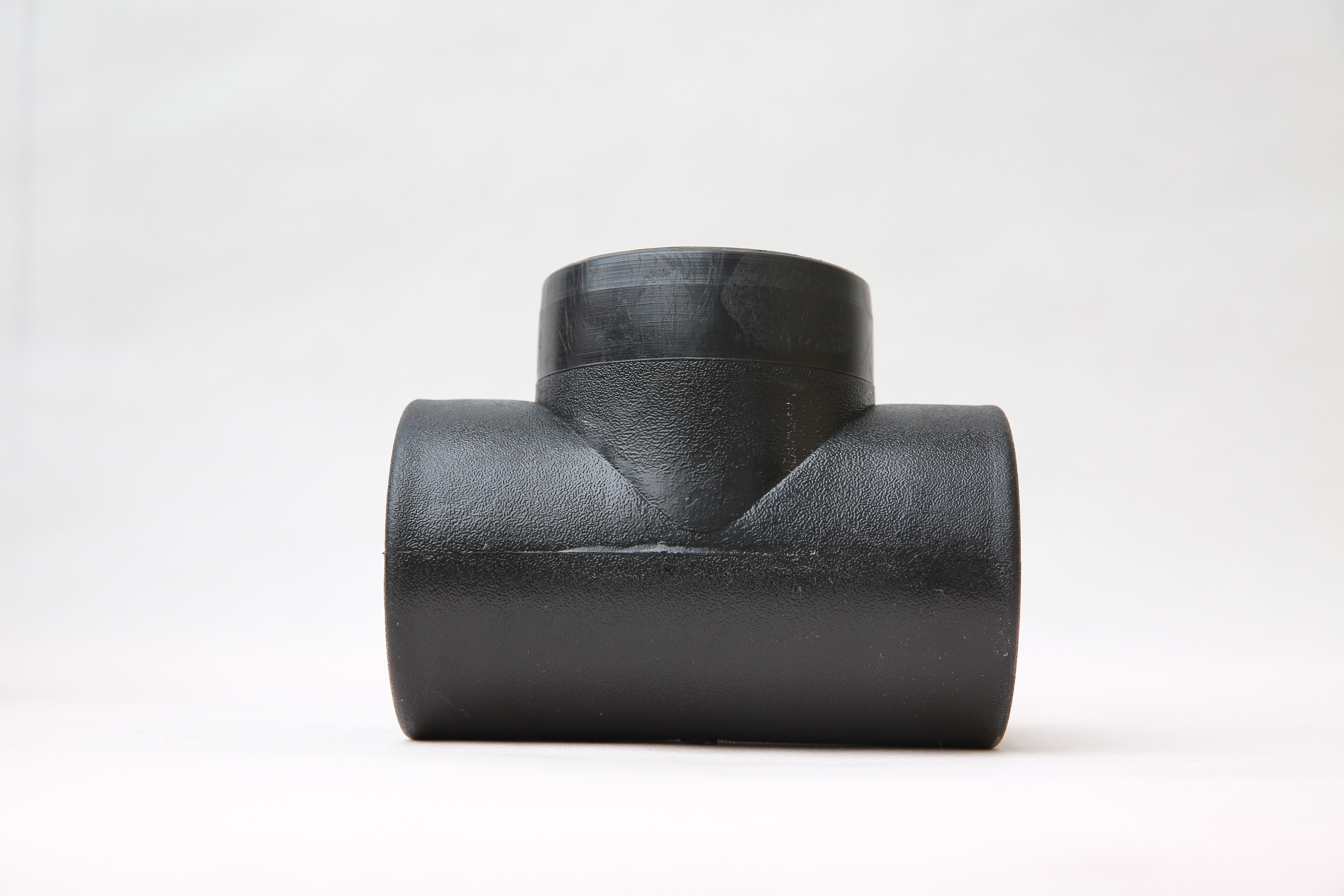

    Black Color HDPE Socket Fusion Fittings Reducing Tee PE100 PN16 SDR11

    HDPE Socket Fusion Fittings Reducing Tee for Water Supply PE100 PN16 SDR11
    Production Description of Socket Joint Or Fusion HDPE fittings

    CHUANGRONG HDPE socket fittings are mainly used to connect OD20-110mm pipelines, and are used

    for water supply, gas, irrigation, etc. Socket welding principle: This method of connecting pipes and fittings

    involves a heating tool that can simultaneously heat plastic pipes and fittings to a melting point. In this case,

    the molten pipe can be melted by inserting it To connect the two in the socket of the accessory. Once properly

    inserted and allowed to cool, these two parts become a continuous bond of HDPE plastic, unable to separate

    and form a stronger connection than its parts.


    CHUANGRONG manufactures a full line of HDPE socket fusion fittings, in which the outer diameter of the

    pipe is controlled over the entire thickness of the side wall. We offer stocks of the following socket welding

    sizes: OD20-110mm, 1/2 ", 3/4", 1 ", 1 1/4", 1 1/2 ", 2".

    And comprehensive types: casing, elbow, tee, flange head, inner and outer wire fittings.


    Reasons to Choose CHUANGRONG Socket Fusion HDPE Fittings


    1.Technology R & D of HDPE fittings


    Research and development of new technologies are at the core of the company's invincibility in an incre

    asingly competitive global environment.


    To guide our company to excellence, the R & D department must continuously create technological value.

    Provide customers with more efficient and quality solutions for water and natural gas transportation, enab

    ling our customers to improve the quality and performance of their work sites.


    There is also the safety of HDPE fittings, such as geolocation of previously welded parts and reduced test

    time.


    2.Technical Support within 24 hours

    Through professional, timely and effective technical assistance, close communication with custo

    mers, the fastest and efficient solution to customer problems, and the establishment of strong contacts.


    3.Impact Resistance


    4. Lower system and maintenance costs


    5.Excellent Shock Resistance


    Details of HDPE Socket Joint Fusion Reducing Tee
    Products nameSocket Joint Fusion HDPE Reducing Tee
    Sizes20-110mm
    ConnectionSocket Joint Fusion
    Executive StandardEN 12201-3:2011
    Colors AvailableBlack color , blue color, Orange or as request.
    Packing MethodNormal export packing. by carton
    Production Lead TimeDepending on the order quantity.
    Normally about 15-20 days for 20ft container, 30-40 days for a 40ft container
    CertificateWRAS,CE,ISO,CE
    Supply Ability100000 Ton/Year
    Payment MethodT/T, L/C at sight
    Trading MethodEXW, FOB, CFR, CIF, DDU

    Specification sheet of HDPE Socket Joint Fusion Reducing Tee

    Packing & Delivery of HDPE Socket fusion Reducing Tee
    SPECIFICATION
    φD
    QUANTITY
    (PC)
    BOX SIZE
    (W×L×D)mm
    Unit Volumn(cbm)NW/CTN
    (KG)
    25×20×2540050*41*260.053316.00
    32×20×3220050*41*260.053312.00
    32×25×3220050*41*260.053313.00
    40×20×4015050*41*260.053311.25
    40×25×4015050*41*260.053311.25
    40×32×4012050*41*260.053310.80
    50×20×5016063*36*280.06416.80
    50×25×5016063*36*280.06417.60
    50×32×5016063*36*280.06417.60
    50×40×5012061*42*360.09317.40
    63×20×6312061*42*360.09315.60
    63×25×6312061*42*360.09315.00
    63×32×6312061*42*360.09315.00
    63×40×638061*42*360.09314.80
    63×50×638061*42*360.09316.00
    75×40×755062*36*360.0815.25
    75×50×755062*36*360.0815.75
    75×63×755062*36*360.0815.75
    Application of Socket Fusion HDPE fittings

    1.Municipal water supply, gas supply and agriculture etc.
    2.Commercial & Residential water supply
    3.Industrial liquids transportation
    4.Sewage treatment
    5. Food and chemical industry
    7. Replacement of cement pipes and steel pipes
    8. Argillaceous silt, mud transportation
    9. Garden green pipe networks


    Certifications of Socket Joint Fusion HDPE Fittings

    We can supply ISO9001-2008, BV ,SGS, CE etc certification.
    All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test, quick

    stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach

    the relevant standards from raw materials to finished products.
