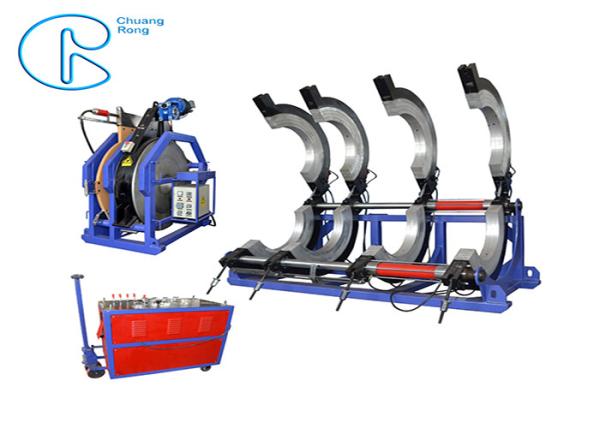

Electric Cutter 1200MM / 1600MM Pipe Welding Machine With Crane

    Buy cheap Electric Cutter 1200MM / 1600MM Pipe Welding Machine With Crane from wholesalers

    Buy cheap Electric Cutter 1200MM / 1600MM Pipe Welding Machine With Crane from wholesalers
    • Buy cheap Electric Cutter 1200MM / 1600MM Pipe Welding Machine With Crane from wholesalers

    Electric Cutter 1200MM / 1600MM Pipe Welding Machine With Crane

    Ask Lasest Price
    Brand Name : CR
    Certification : CE,ISO, ISO,CE
    Price : negotiated
    Model Number : CRDH series (1200,1600)
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 100000 set/ per year
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Electric Cutter 1200MM / 1600MM Pipe Welding Machine With Crane

    Electric Cutter 1200MM / 1600MM Pipe Welding Machine With Crane
    1200MM / 1600MM Pipe Welding Machine Description
    This is a self-aligning welding machine with hydraulic clamps suitable for welding HDPE pipes for the transport of water and other fluids under pressure, up to DN1600mm.
    The CRDH 1600 is designed in accordance to international standards(UNI10565,ISO12176-1). The CRDH1600 can weld fitings such as elbows,tees, branches and flange necks.
    MAIN TECHNICAL PARAMETERS
    ModelCRDH 1200CRDH 1600
    Range
    (mm)
    800/900/1000/1100/12001200/1400/1600
    TypeElbow,90 degree equal tees,cosses,
    Equal Branch Tee and Wye
    The Heating Plate Temperature170-250℃(±7℃)
    Max270
    170-250℃(±7℃)
    Max270
    Power Supply36.5KW59KW
    Total Weight1800kg2500kg
    Optional AccessoryStub end holder and special inserts

    1200MM / 1600MM Pipe Welding Machine Uses and Features:


    -Robust machine body made of steel

    -Steel hydraulic clamping

    -Automotic detaching device of heating plate

    -Raised platform deck for perfect monitoring of fusion process

    -Easy to operate control panel.

    -The data-logging compatible

    -On board hydraulic control gearcase

    -Pressure adjustment and pressure release valves for easy operations

    -Hydraulically controller facer with safety microswitch

    -Teflon coated heating plate with indipengdent tehrmometer

    -From the rack, cutter, independent heating plates and bracket
    -Frame made of high strength materials and structures, 45 ℃ tilt design
    -Electric cutter, safety limit switch to prevent accidental start-cutter

    1200MM / 1600MM Pipe Welding Machine Packing
    CRDH 1200Body+ Hydraulic
    2970*1980*2080
    12.2319722368
    Frame
    1880*1170*2360
    5.1911071297
    Total17.42307936652 cases
