HDPE Draign Supply Pipe Electrofusion Welding Machine

    Buy cheap HDPE Draign Supply Pipe Electrofusion Welding Machine from wholesalers

    Buy cheap HDPE Draign Supply Pipe Electrofusion Welding Machine from wholesalers
    • Buy cheap HDPE Draign Supply Pipe Electrofusion Welding Machine from wholesalers

    HDPE Draign Supply Pipe Electrofusion Welding Machine

    Ask Lasest Price
    Brand Name : Ritmo
    Certification : ISO9001:2008,CE
    Price : negotiated
    Model Number : Universal 315,Mustang 160
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 10000 set/ per year
    Delivery Time : 7-20 days
    • Product Details
    • Company Profile

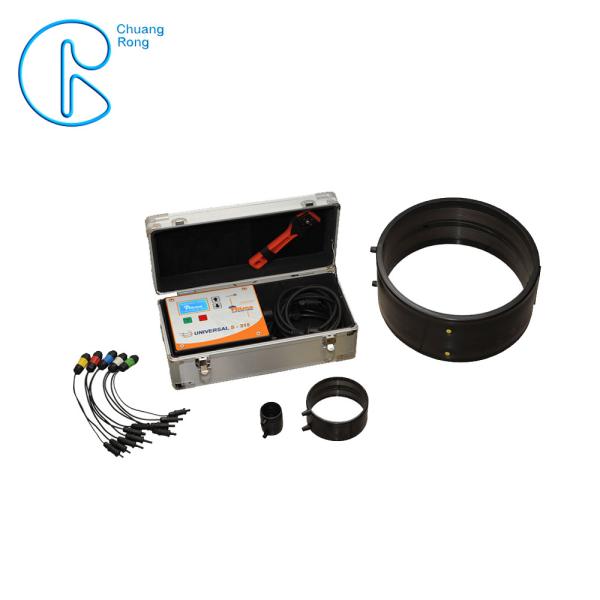

    HDPE Draign Supply Pipe Electrofusion Welding Machine

    HDPE Draign Supply Pipe Electrofusion Welding Machine Universal 315 Mustang 160 HDPE Low Pressure Conduits
    Universal 315 Mustang 160 HDPE Low Pressure conduits HDPE draign Supply Pipe Welder Electrofusion Machine
    This electrofusion machine is suitable for welding elecrofusion fittings in HDPE from dn20-dn315mm, for low pressure coduits. The Mustang 160 automatically detects connection to the fittings to be welded and compensates current supplied according to ambient temperature. It is also capalbe of dececting any malfunction that could occur before or during welding procedures.
    Electrofusion Machine Universal 315-Description
    1. Low pressure HDPE diameter 32-315 mm;
    2. PP-R from 20-63 mm (optional cable)
    3. Graphic display
    4. Automatic identification of accessories
    5. Can store 350 welding reports
    6. Serial / USB connector (optional)
    7. Self-compensation of the supplied current (according to ambient temperature)
    8. Transport box
    9. Can upgrade firmware via USB

    Standard components include Carrying suitcase, Welding cables * (A00, A01, A02, A03, A04, A00+), Welding extension cable, Manual scraper, Shoulder belt


    ON REQUEST (ACCESSORIES): serial/USB adapter (welding data transfer), welding cable A05


    Electrofusion Machine - Universal 315 Technical Features
    MaterialsHDPE-low pressure
    PE PP-R (ON REQUEST)
    Working range20-315 mm
    Power supply230 V single phase 50/60 Hz
    110 V single phase 50/60 Hz
    Total abdorbed power2470 W (230 V)
    2700 W (110 V)
    Outside temperature range-10° ÷ 45° C
    Temperature compensationAutomatic Electronic
    Protection degreeIP 54
    Dimensions machine255 x 180 x 110 mm (230 V)
    330 x 270 x 220 mm (110 V )
    Dimensions carrying case220 x 450 x 180 mm (230 V)
    410 x 290 x 485 mm (110 V)
    Weight machine3,4 Kg (230 V)
    19 Kg (110 V)
    Weight machine and carrying case7,2 Kg (230 V)
