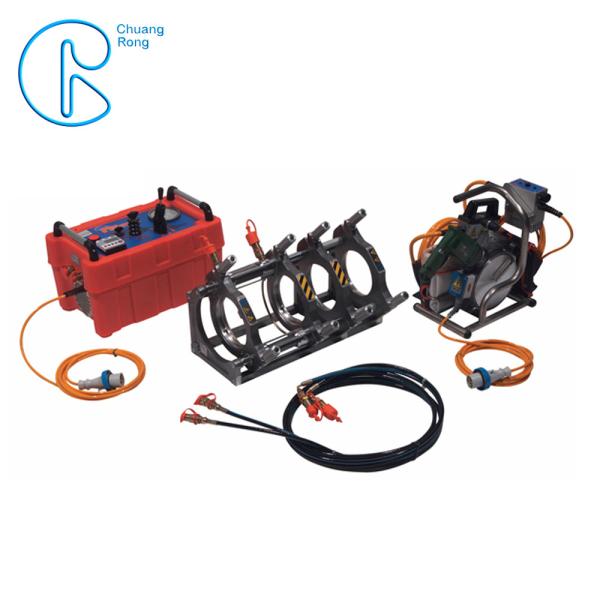

    Large Size 1200 mm Pipe Fittings Hydraulic Welding Machine One Year Warranty

    One Year Warranty Large Size 1200 mm Pipe Fittings Hydraulic Welding Machine
    Butt Fusion Machine Description
    1. The hydraulic system is made of imported control valve and seals. The oil seals are well controlled and have a long life.
    2. The heating plate is made of imported DuPont Teflon coating and coated by the standard coating process of professional paint factory. The effect is good and the service life is long.
    3. Temperature sensing system, accurate temperature control and long service life.
    4. The milling cutter has a safety micro switch to prevent accidents.
    5. Single clamp, accurate processing size, can effectively reduce the time of pipeline routing, improve work efficiency or welding efficiency.
    6. Equipped with a crane for welding large pipe or pipe fittings

    Standard composition:
    1.Machine body
    2.Milling cutter
    3.Heating plate
    4.Hydraulic control unit
    5.Support
    6.Multilayer stacking clamps

    Butt Fusion Machine Technial Feature
    ModelZYR-500ZYR-630ZYR-800ZYR-1000ZYR-1200
    Working Range
    (mm)
    315-500mm400-630mm710-800mm800-1000mm1000-1200mm
    Rated voltage380VAC- 50/60HZ
    Weight520kg753kg2600kg2680kg2780kg
    Rated power3550W4950W8850W
    Max Pressure6MP
    MaterialPE,PP,PB,PVDF
    Hydraulic oil46#
    Rated power9.5kw12.95kw18.2kw24kw36.5kw

    Butt Fusion Machine Application
