    Pipe Extrusion Line Pe Hot Plastic Extrusion Welding Gun Plastic Fabrication

    Ask Lasest Price
    Brand Name : CR
    Price : $1000-$3500/set
    Model Number : R-SB20 R-SB30 R-SB40 R-SB50
    Payment Terms : TT / LC / WESTERUNION
    Supply Ability : 1000 SETS/ Month
    Delivery Time : 3-5 working day
    • Product Details
    • Company Profile

    Pipe Extrusion Line Pe Hot Plastic Extrusion Welding Gun Plastic Fabrication

    Pipe Extrusion Line Pe Hot Plastic Extrusion Welding Gun Plastic Fabrication
    Fabrication--STARGUN

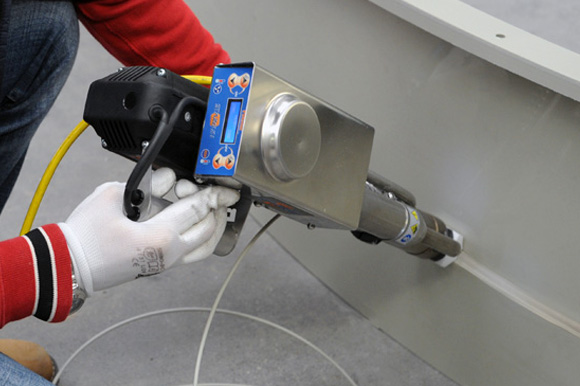

    STARGUN is the line of handy and easy to use extruder welders.All models distinguish for being light ,compact and very smooth during the welding phase.The entire line is supported by a series of interchangeable Teflon shoes which allow the STARGUN to adapt to every kind of welding situation:from plane sheets to oblique angles.Thanks to their versatility they are able to weld different types of fabrications like:containing tanks,fume treatment towers,scrubbers,chemical hoods,aspiration systems and for joining linings and geo-textiles. All the models can be provided with different types of handle which allow to customize the extruder in order to give the operator a high-performance instrument.

    In the chart below find the main characteristics tha make of the STARGUN a unique instrument.


    -Backlight display

    -Welding-area spot light LEDs

    -Output redulator(for back handle and pistol grip)

    -Temperature control safety system cold start control

    -Built -in blower

    -Double T ° controller blower/extrusion chamber

    -Rotating side-handle

    -Replaceable 360 ° rotating teflon shoe

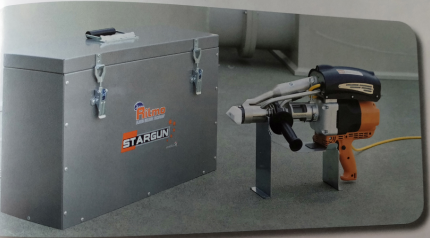

    Supplied with:Aluminium case,extruder support,rod guide 4-5 mm, 90° teflon shoe,teflon block and teflon flat shoe


    TypeR-SB 20R-SB 30R-SB 40
    Materials
    HDPE/PP/PVDFHDPE/PP/PVDF
    HDPE/PP/PVDF
    Rod
    3-4mm3-4-5mm
    4-5 mm
    Output:up to
    2/Kg/h3.2Kg/h
    4Kg/h
    Dimensions
    450*310*100mm500*280*100mm
    640*200*100mm
    Weight
    6.9Kg7Kg
    7.5Kg
    Voltage
    230V230V
    230V
    Absorption
    3100W3350W
    3330 W
    Frequency
    50/60 Hz50/60 Hz

    50/60 Hz

    Sheets
    4-20mm4-30mm
    8-30mm

    Packing

    Packing in one aluminiun case:
    Dimensions:82*26*40cm
    N.W:15.5kg
    G.W:16kg



    Application
    Customized plastic fabrication using.
