    Hollow Fiber MBR Biological Reactor Wastewater Treatment Recycling Flat Sheet

    Ask Lasest Price
    Brand Name : CR
    Price : USD20 Square Meter
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 1000 Square Meter per month
    Delivery Time : 3-4 working days
    • Product Details
    • Company Profile

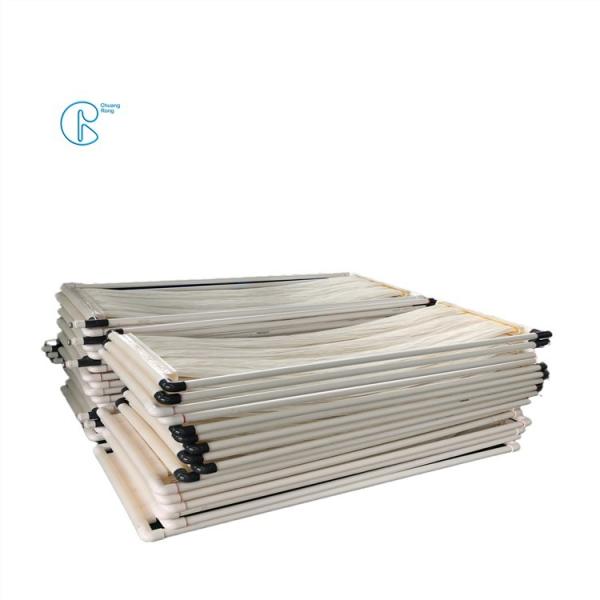

    Hollow Fiber MBR Biological Reactor Wastewater Treatment Recycling Flat Sheet

    Flat Sheet Waste Water Treatment Hollow Fiber MBR Membrane Recycling Membrane Bioreactor


    Description


    Membrane Bioreactor' (MBR) is an advanced and high efficient wastewater treatment technology.

    It integrates membrane such as microfiltration or ultrafiltration membrane with a biological process.

    The use of membrane as a filter, MBR process rejects the solid materials which are developed by

    the biological process, and results in a substantially clarified and disinfected effluent of high enough

    quality to be discharged to sensitive receiving bodies or to be reclaimed for applications such as urban irrigation,

    utilities or toilet flushing.


    Operation Condition


    Design Flux(m³/.d)2.5-3.5
    Filtration ModeNegative Pressure Suction Filtration
    Operating Pressure(MPa)0.01-0.05
    Suction pressure(MPa)0.08
    Operating Temperature(ºC)1-40
    PH Range2-11
    Max. Feed Water Chlorine (mg/L)200
    Aeration Rate60-100(m³/h. Projection Area)
    Oil content (mg/L)Natural oil<50mg/L;Mineral oil<3mg/L
    Sludge concentration (mg/L)5000~8000 ;MLSS≤18000
    Running cyclerun 8min; pause 2min

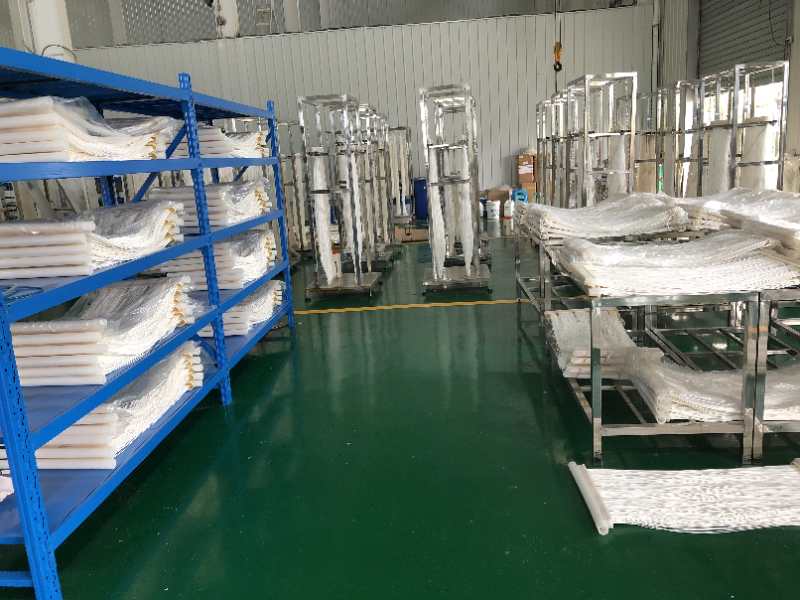

    Production & Development
