Commercial Hdpe Electrofusion Branch Saddle PN16 SDR11 PE100 For Gas Transportation

Ask Lasest Price
Brand Name :	CR
Model Number :	*6332mm~31590mm*
Certification :	ISO9001-2008, CE,BV,SGS,Factory test
Price :	$10.64~$44.69/PCS
Payment Terms :	L/C,T/T, Western Union
Supply Ability :	100000 Ton/Tons per Year
Delivery Time :	40GP during 3~4 weeks or as required

Add to Cart

Product Details
Company Profile

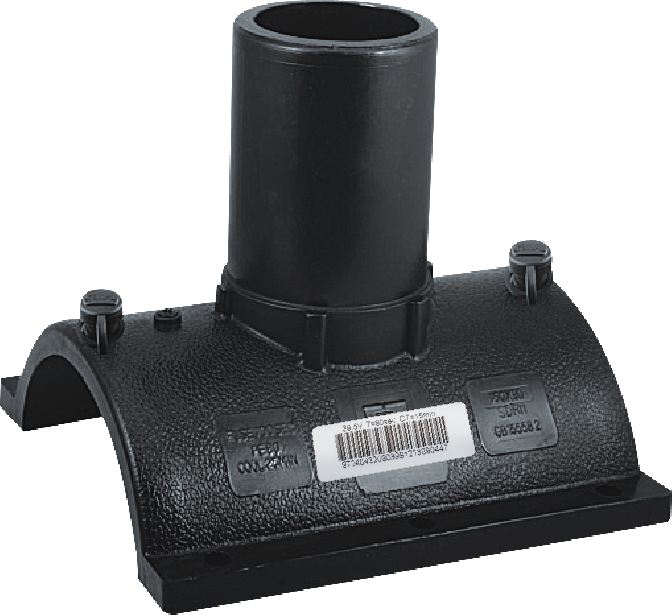

Commercial Hdpe Electrofusion Branch Saddle PN16 SDR11 PE100 For Gas Transportation

Electrofusion HDPE Fittings Branch Saddle for Gas supply PN16 SDR11 PE100

Production Description of Electrofusion HDPE Branch Saddle

-Electrofusion HDPE fittings are welded by electrofusion machine to connect HDPE pipes together: After

electrofusion welding machine plug in electricity and turn on, The copper wire buried inserted in electric

fuse HDPE fittings are heated and make HDPE melt, Which joint HDPE pipe and fittings well.

Adavantages of CHUANGRONG Electrofusion HDPE Fittings

1.Safety and Reliability

Life span of at least 50 years

Completely maintenance-free

In all weather conditions

Excellent chemical resistance

Good impact and abrasion resistance

2.Sustainability

CHUANGRONG HDPE pipeline system integrates its environmental responsibility into its daily business

activities.HDPE is a green environmental protection material, which can be recycled without causing pollu

-tion to the environment.

We work hard to conserve natural resources and constantly strive to optimize the environmental perform

ance of our products and how they used.

3.Technical Support

The key factors of product quality are technical support and material selection

Installed successfully. Our strong and efficient teamwork provides customers with the best solution in a

timely manner: the sales team understands and understands the customer's use and proposes suitable

HDPE pipeline solutions and products. The production department coordinates the production plan to e

nsure the fastest delivery time. Engineers and technicians solve and provide technical product performa

nce and technical support.

4.Environmental

CHUANGRONG HDPE pipeline system integrates its environmental responsibility into its daily business

activities.

HDPE is a green environmental protection material, which can be recycled without causing pollution to the

environment.

We work hard to conserve natural resources and constantly strive to optimize the environmental performa

nce of our products and how they

used.

Production Workshop of Electrofusion HDPE Fittings

Own over 100 sets of injection molding machine;

The largest(300,000g) domestic injection molding machine;

Over 20 units hautomation robot;

8 sets automation Electrofusion HDPE fittings production system.

Annual capacity of over 13000 tons which gives customers huge inventory support.

P₂:4.7 Pin(4.0 welded by Switched adaptor) P_3:Printed Parameters P_4:Embedded copper wire

1) Fusion Pin of Electrofusion HDPE fittings

4.7mm Pin of Electrofusion HDPE fittings produced.

Besides switched adaptors for 4.0 Pin supplied to suit claw of 4.0 electrofusion machine.

2) Moulded-in welding parameters

Welding parameters as per EN1555 is printed on the fittings, Such as Products' name,OD(mm),PE100,

PN16 SDR11.

Bar code is also attached on the electrofusion fittings for scanning.

3) Element&Stops

To promote joint quality,all elements are coated with polyethylene before being moulded into the fitting body.

All fittings have removable pipe stops.The stops ensure pipes cannot be inserted past the midpoint,but can

be removed for use in,for example,repair situations.

4) High quality copper wire embed in the HDPE fittings which have Good thermal conductivity.

Details of Electrofusion HDPE Branch Saddle

Products name	Electrofusion HDPE Tapping Branch Saddle
Sizes Available	As below specification sheet in detail
SDR	SDR11
PN	PN16
Material Brand	SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard	EN 1555-3:2010
Colors Available	Black color or as request.
Packing Method	Normal export packing. by carton
Production Lead Time	Depending on the order quantity. Normally about 2~3 weeks for 20' GP, 3~4 Weeks for a 40'GP.
Certificate	ISO, CE,BV,Factory Test Report
Supply Ability	100000 Ton/Year
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF,DDU

Specification of Electrofusion HDPE Branch Saddle

specifications φD×D1	L mm	A mm	B mm	H mm	d mm
63×32	110	100	45	80	4.7
90×63	145	155	80	145	4.7
110×32	145	160	80	145	4.7
110×63	145	160	80	145	4.7
160×63	190	230	100	185	4.7
163×90	190	230	100	185	4.7
200×63	190	235	110	185	4.7
200×90	190	235	115	195	4.7
250×63	190	300	125	195	4.7
250×90	190	300	125	195	4.7
315×63	190	300	115	195	4.7
315×90	190	300	115	200	4.7

Applications of Electrofusion HDPE Fittings

1. Municipal water supply, gas supply and agriculture etc.
2. Commercial & Residential water supply
3. Industrial liquids transportation
4. Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks

Inspection Equipment of Electrofusion HDPE fittings

Finished products get well inspection before delivery.

Factory Test report of Electrofusion HDPE Branch Saddle

Test item	Standard	Conditions	Results	Unit
1.Melt Flow Index	ISO1133	190°C & 5.0Kg 0.2-0.7	0.49	g/10min
2.Density	ISO1183	@23°C ≥0.95	0.960	g/cm3
3.Oxidation Induction Time	ISO11357	210°C >20	39	Min
4. Hydrostatic Pressure Test	ISO1167	80°C 165h, 5.4Mpa	Passed
5 Size Check	ISO3126	23°C	Passed
6 Appearance	Clean& Smooth	23°C	Passed

The results according to test 1-3 are taken form the PE raw material supplier’s report.
The results according to test 4-6 are taken from the internal test results of fittings sampled from the
same batch as delivered fittings.
Marking according EN 12201 – 3 and EN 1555 – 3.
The pass/fail criteria are based on the requirements of the UNI EN 12201 and UNI EN 1555 standards.

Certifications of Electrofusion HDPE Branch Saddle

We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test,

quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products

totally reach the relevant standards from raw materials to finished products.
