CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

Ask Lasest Price
Brand Name :	CR
Model Number :	50mm~400mm
Certification :	ISO9001-2008, CE,BV,SGS,Factory test
Price :	$2.15~231.65 USD/PCS
Payment Terms :	L/C,T/T, Western Union
Supply Ability :	100000 Ton/Tons per Year
Delivery Time :	40GP during 2~3 weeks or as required

Add to Cart

Product Details
Company Profile

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

HDPE Electrofusion Fittings Flange Adapter for Gas and Water supply PN16 SDR11 PE100

Production Description of Electrofusion Flange Adapters

Electrofusion is a method of joining MDPE, HDPE and other plastic pipes using special fittings that have

built-in electric heating elements which are used to weld the joint together.

Electrofusion HDPE fittings(Include electrofusion reducing tee, Elbow, Reducer, End cap, Stub end etc.)

are welded by electrofusion machine to connect HDPE pipes together: The electrofusion welding machine

plug in electricity and turn on, The copper wire buried inserted in electric fuse HDPE fittings are heated and

make HDPE melt, Which joint HDPE pipe and fittings well.

Excellent Performances of CHUANGRONG Electrofusion HDPE Fittings

1.Flexiblity

Multiple connection methods, suitable for electric melting, hot melting, socket, flange connection. Electrofu

-sion is the most efficient, time-saving, and labor-saving welding method.

CHUANGRONG provides high-, middle- and low-end brands of electric fusion welding machines to meet

the various needs of customers.

Including RITMO and CHUANGRONG Brand.

2.Sustainability

Relatively low carbon footprint

Fully recyclable, environmentally friendly materials

3.Professional Solution

1) Accept customer OEM production, large quantity customization requirements.

2) Technical support:Professional engineers and senior, special engineers provide technical support:More

than 80 Technique personnel,20 Middle class engineer,8 Senior Engineers.

3)More than 100 sets injection molding machine and the largest (300,000g)domestic injection molding ma

-chine;Over 20 units of automation robot, 8 sets automation Electrofusion fittings production system.

4)Various type(Elbow,Coupler,Tee,End Cap,Saddle,Ball Valve etc) and completed specification(Ranged

from 20-630 Electrofusion type)

5)Annual production capacity up to 13000 tons(More than 10 million pieces or more)

4.Technical Support

In order to better serve our customers, we have documented a wide range of Expertise in production and

installation of piping systems to support large and medium-sized projects.

Pictures of Electrofusion HDPE fittings

CR HDPE Electrofusion Fittings , Electrofusion Flange Adaptor For Hdpe Pipe PN16 SDR11 PE100

P₂:4.7 Pin(4.0 welded by Switched adaptor) P_3:Printed Parameters P_4:Embedded copper wire

1)Fusion Pin

Invented by fusion,the fusamtic pin provides a totally automatic method for ensuring the correct welding

parameters are used.Within each fusamatic pin is resistor.When the electrofusion box is connected to the

fitting,the fusamatic pin enables it to automatically identify the correct fusion time requited to make the joint.

All the operator has to do is press go.

2)Moulded-in welding parameters

Manual welding parameters are moulded into the body of all fusion's fitting.Information provided includes

fitting size,material(PE80 or PE100),applicable pipe SDRs,weld parameters,and pressure ratings for gas

and water applications.

3)Element&Stops

To promote joint quality,all elements are coated with polyethylene before being moulded into the fitting body.

All fittings have removable pipe stops.The stops ensure pipes cannot be inserted past the midpoint,but can

be removed for use in,for example,repair situations.

Details of Electrofusion HDPE Reducing Tee

Products name	Electrofusion HDPE Reducing Tee
Sizes Available	As below specification sheet in detail
SDR	SDR11,SDR17
PN	PN16,PN10
Material Brand	SINOPEC, BASELL, SABIC, BOROUGE etc
Executive Standard	EN 12201-3:2011,EN 1555-3:2010
Colors Available	Black color , blue color, Orange or as request.
Packing Method	Normal export packing. by carton
Production Lead Time	Depending on the order quantity. Normally about 2~3 weeks for 20' GP, 3~4 Weeks for a 40'GP.
Certificate	ISO, CE,BV,Factory Test Report
Supply Ability	100000 Ton/Year
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF,DDU

Specification of HDPE Reducing Tee

Specifications φdn	Φdn1	Φdn2	L mm	A mm	B mm	Φd
50	89	65	116	110	17	4.7
63	102	79	115	115	18	4.7
75	121	94	125	125	20	4.7
90	139	109	140	140	23	4.7
110	172	139	145	145	25	4.7
160	228	189	152	152	28	4.7
200	289	234	174	174	30	4.7
250	339	280	123	123	32	4.7
315	390	349	127	127	39	4.7
400	513	436	153	153	39	4.7

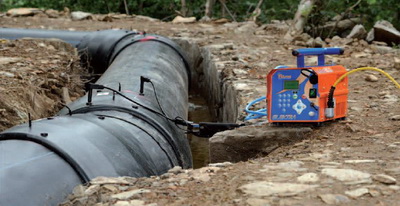

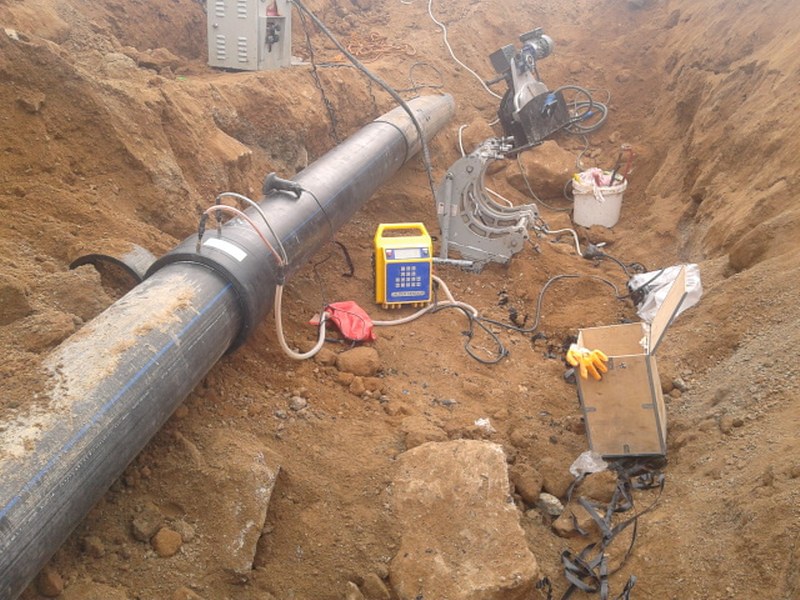

Applications of Electrofusion HDPE fittings

1.Municipal water supply, gas supply and agriculture etc.
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks

Production workshop & Equippments

Own over 100 sets of injection molding machine;

The largest(300,000g) domestic injection molding machine;

Over 20 units hautomation robot;

8 sets automation Electrofusion HDPE fittings production system.

Annual capacity of over 13000 tons which gives customers huge inventory support.

Certifications

We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blasting test,longitudinal shrinkage rate test,

quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products

totally reach the relevant standards from raw materials to finished products.
