A 45⁰ electrofusion elbow is used to join two lengths of poly pipe on an angle of 45 degrees.
Electrofusion elbow 45⁰ fittings are also used to join a long spigot fitting to a piece of pipe on a 45⁰ angle.
With a size range from 32 mm to 180 mm, 45⁰ electrofusion elbow fittings come in SDR 11
(which also suits SDR 13.6 & SDR 17).
Electrofusion 45⁰ elbows are rated to PN16 water and 1000 kPa gas.
Electrofusion elbow fittings are made from PE100 material with a precisely moulded energising coil of wire,
ensuring uniform melting for a strong electrofusion joint and the minimisation of welding and cooling times.
45⁰ elbow electrofusion fittings are suitable for use for HDPE pipe, and welded with an electrofusion
pressure welder. 45⁰ electrofusion elbow PE fittings may also be known as an electrofusion elbow joiners
or EF elbow pipe joiners.
Products name | Electrofusion Elbow 45 |
Sizes Available | 50,63,75,90,110,125,140,160,180,200,225,250,315,355,400,450,500,560mm |
SDR | SDR11 |
PN | PN16 |
Material Brand | PE100 PE80 |
Executive Standard | EN 12201-3:2011,EN 1555-3:2010,ISO |
Colors Available | Black color , blue color, Orange or as request. |
Packing Method | Normal export packing. by carton |
Production Lead Time | Depending on the order quantity. |
Certificate | ISO, CE,SGS,WRAS |
Supply Ability | 100000 Ton/Year |
Payment Method | T/T, L/C at sight |
Trading Method | EXW, FOB, CFR, CIF,DAP,DDP |

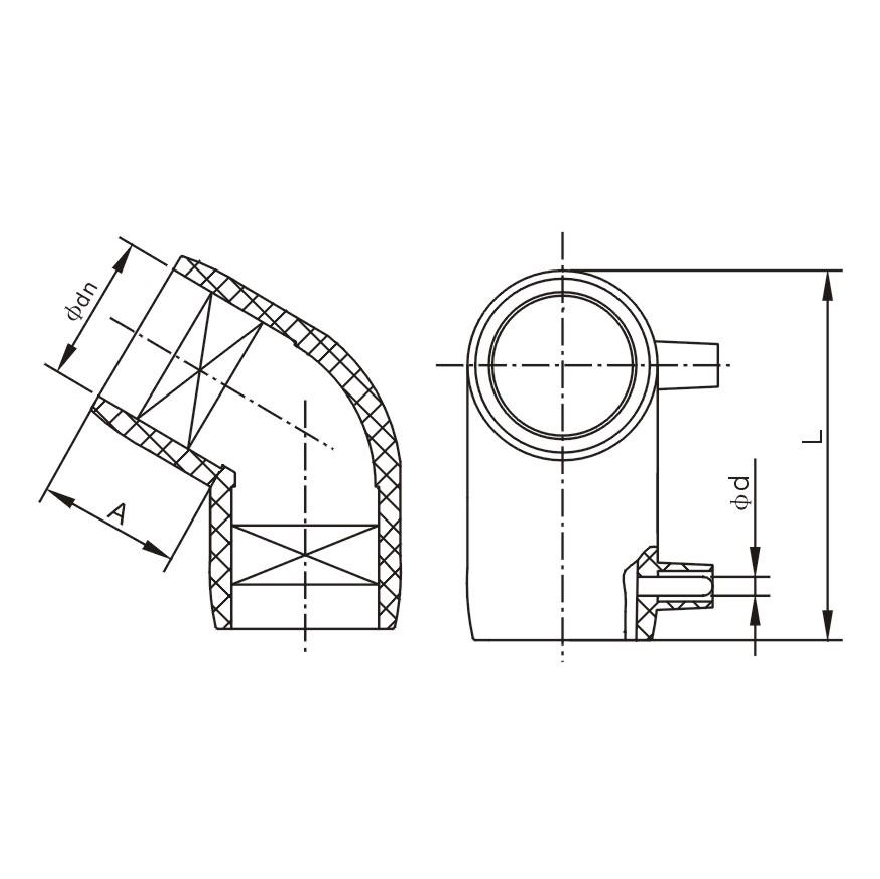

Characteristics Electrofusion Elbow 45°
Main features: Electrofusion fittingsli; PE100 black (on request also available blue, yellow and orange);
working voltage 39,5-48 V; Injection moulded.
Suitable for: piping systems for water distribution (UNI EN 12201 - ISO 4427) up to PN25 bar;
piping systems for industrial applications (UNI EN ISO 15494);
piping systems for the distribution of fuel gas (UNI EN 1555 - ISO 4437).
Jointing method: electrofusion.

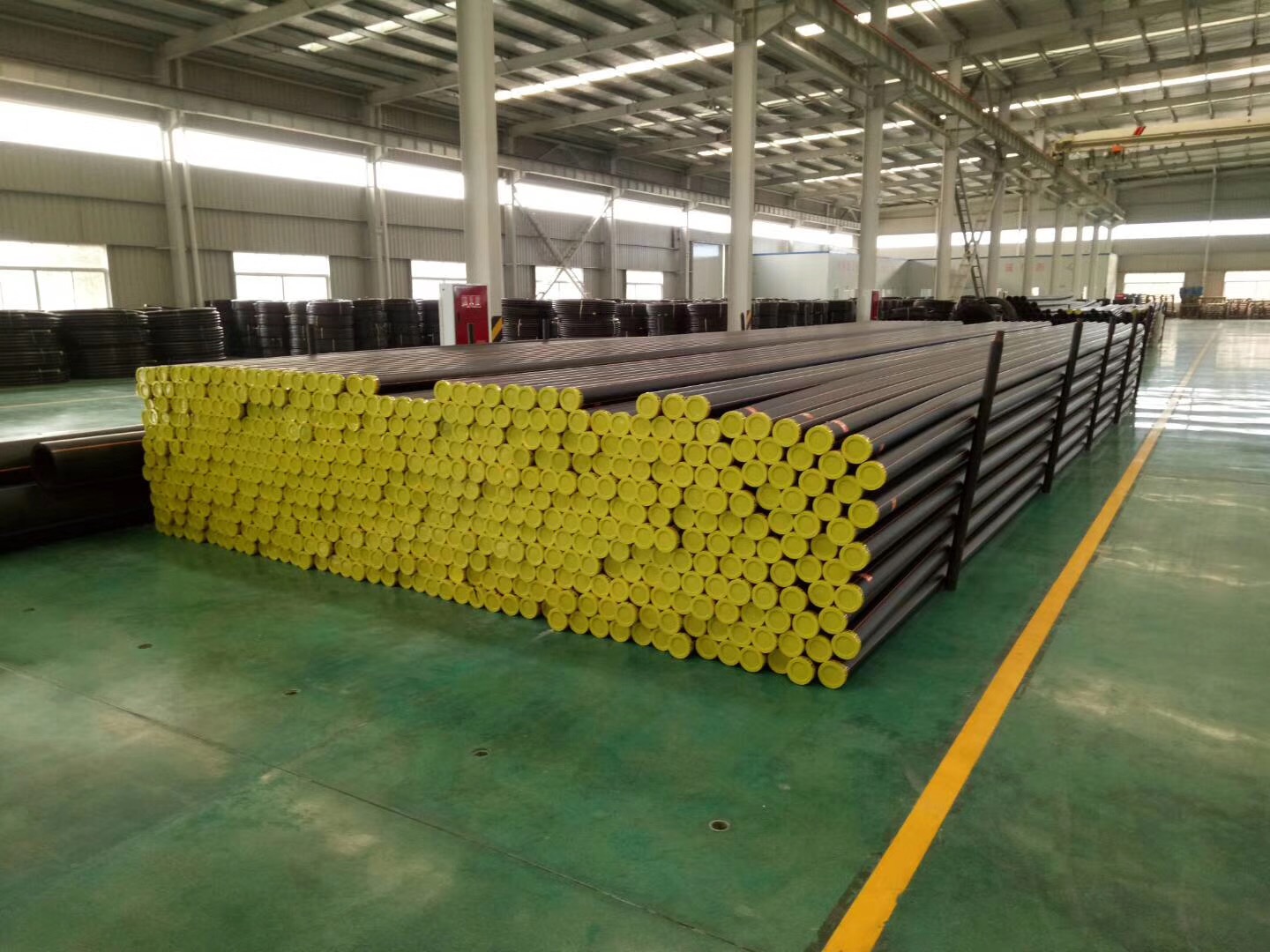

CHUANGRONG is a share enterprise that specializes in the R&D, production,
sale and
engineering installation of new-type plastic pipes and fittings since 2005.
We have exported our products more than 50 countries and area.
our pipes and ACCESSORIES are selling very good in South Africa,Germany and Bangladesh,
Maldives ,Philippines now, with our sperior quality products,our customer got a 15% revenue up .
Main products:
1.Plastic pipe
2.HDPE fittings
3.PPR fittings
4.PP compression fittings
5.pipe welding machine and tools
6.piperepair clamp
Our aim is to provide customer with the best solutions of plastic
pipe connection.
