63 - 160 MM / 63 - 200 MM Manual Butt Fusion Machine One Year Warranty

    Buy cheap 63 - 160 MM / 63 - 200 MM Manual Butt Fusion Machine One Year Warranty from wholesalers

    Buy cheap 63 - 160 MM / 63 - 200 MM Manual Butt Fusion Machine One Year Warranty from wholesalers
    • Buy cheap 63 - 160 MM / 63 - 200 MM Manual Butt Fusion Machine One Year Warranty from wholesalers

    63 - 160 MM / 63 - 200 MM Manual Butt Fusion Machine One Year Warranty

    Ask Lasest Price
    Model Number : CRDHS
    Certification : ISO9001:2008
    Supply Ability : 1000 Set/Sets per Year
    Price : can be negotiated / Sets
    Brand Name : CR
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    63 - 160 MM / 63 - 200 MM Manual Butt Fusion Machine One Year Warranty

    One Year Warranty 63 - 160 MM / 63 - 200 MM Manual Butt Fusion Machine


    Single operation,suittable for use in complex construction cases.Applies to the site,a trench connecting PE,PP,PVDF pipes,

    pipe fittings can also be produced in the workshop


    Manual Butt Fusion Machine Description


    MAIN TECHNICAL PARAMETERS
    ModelCRDHS160CRDHS2ACRDHS4A200
    Range
    (mm)
    63/75/90/110/125/140/16063/75/90/110/125/140/160/180/20063/75/90/110/125/140/160/180/200
    The Heating Plate Temperature170-250℃(±5℃)
    Max270
    170-250℃(±5℃)
    Max270
    170-250℃(±5℃)
    Max270
    Power Supply2.15KW2.45KW2.45KW
    Total Weight45.5kg54.5kg55.5kg
    Optional AccessoryStub end holder,Data looger and special inserts

    Manual Butt Fusion Machine Uses and Features

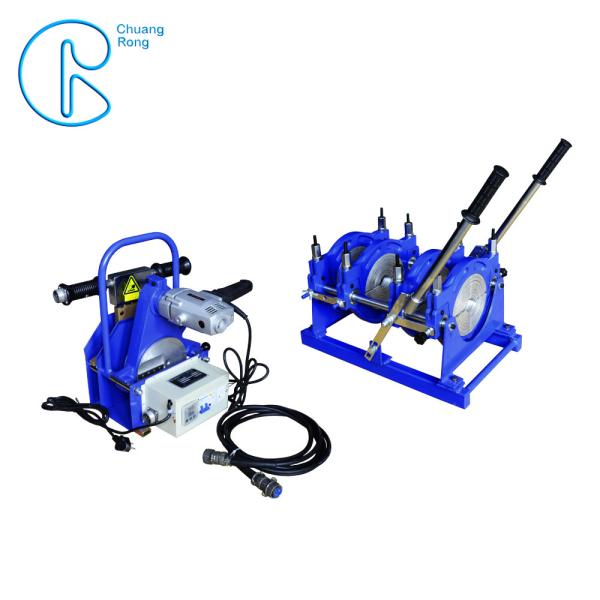

    1. From the track,cutter,electric panels and frame composition

    2. Heating plate with separate temperature control system,teflon coating

    3. Chassis frame is made of high-strengh low-weight design

    4. Electrical boxes integrated design,reducing the number of parts


    Manual Butt Fusion Machine Packing


    Wooden case dimension : 870*520*580mm

    Gross : 54KG
